BÀI 10 : ĐẾM TỪ 0 ĐẾN 99 PIC16F887 XC8

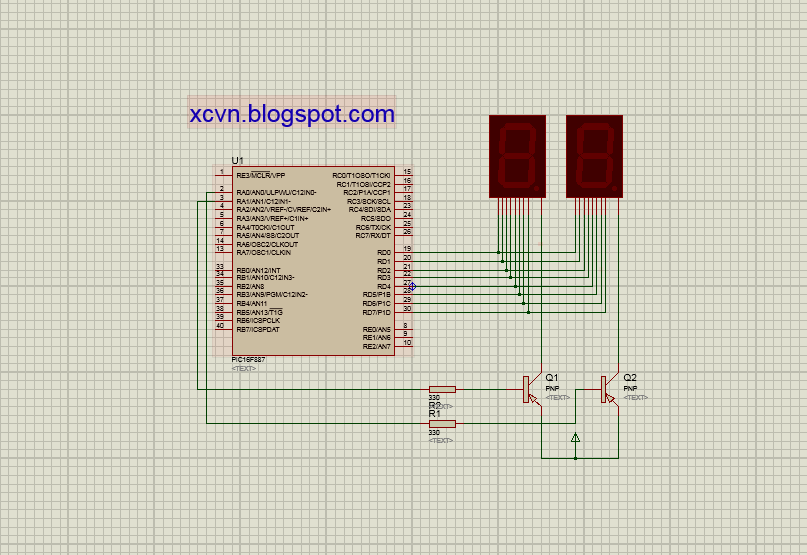

- Đây là ảnh mô phỏng protues.
đếm từ 0 - 99 pic16f887
- Đây là code chương trình.
#include <xc.h>
#include <stdio.h>
#include <stdlib.h>
#define _XTAL_FREQ 8000000
// CONFIG1
#pragma config FOSC = HS        // Oscillator Selection bits (HS oscillator: High-speed crystal/resonator on RA6/OSC2/CLKOUT and RA7/OSC1/CLKIN)
#pragma config WDTE = OFF       // Watchdog Timer Enable bit (WDT disabled and can be enabled by SWDTEN bit of the WDTCON register)
#pragma config PWRTE = OFF      // Power-up Timer Enable bit (PWRT disabled)
#pragma config MCLRE = OFF      // RE3/MCLR pin function select bit (RE3/MCLR pin function is digital input, MCLR internally tied to VDD)
#pragma config CP = OFF         // Code Protection bit (Program memory code protection is disabled)
#pragma config CPD = OFF        // Data Code Protection bit (Data memory code protection is disabled)
#pragma config BOREN = OFF      // Brown Out Reset Selection bits (BOR disabled)
#pragma config IESO = OFF       // Internal External Switchover bit (Internal/External Switchover mode is disabled)
#pragma config FCMEN = OFF      // Fail-Safe Clock Monitor Enabled bit (Fail-Safe Clock Monitor is disabled)
#pragma config LVP = OFF        // Low Voltage Programming Enable bit (RB3 pin has digital I/O, HV on MCLR must be used for programming)
// CONFIG2
#pragma config BOR4V = BOR40V   // Brown-out Reset Selection bit (Brown-out Reset set to 4.0V)
#pragma config WRT = OFF        // Flash Program Memory Self Write Enable bits (Write protection off)
const unsigned char Code7Seg[] = {0xC0, 0xF9, 0xA4, 0xB0, 0x99, 0x92, 0x82,0xF8, 0x80, 0x90};
unsigned int count=0;
unsigned int chuc,donvi;
void display(unsigned count);
void main (void)
{
    TRISD = 0X00;
    PORTD = 0XFF;
    TRISAbits.TRISA0 = 0;
    TRISAbits.TRISA1 = 0;
    ANSELbits.ANS0 = 0; // OFF ADC
    ANSELbits.ANS1 = 0; // OFF ADC
    while(1)
    {
        display(count);
        count++;
        if(count==100)
        {
            count = 0;
        }
    }
}
void display (unsigned int count)
{
        chuc = count/10;
        donvi = count%10;

        PORTAbits.RA0 = 0;
        PORTD = Code7Seg[donvi];
        __delay_ms(50);
        PORTAbits.RA0 = 1;

        PORTAbits.RA1 = 0;
        PORTD = Code7Seg[chuc];
        __delay_ms(50);
        PORTAbits.RA1 = 1;
}
- Link download project Click here
